CSD-A7000（LCD）尊龙凯时豪华型液晶显示金属探测门
性能先容
CSD-A7000尊龙凯时金属探测门（安检门）接纳磁电兼容双探测源手艺制造，防震设计，具有探测精度高，抗滋扰能力极强、计数准确、稳固性好等特点。当人体携带金属物品通过时能爆发报警，能准确探测到人身上或手体包箱中携带的金属物品或含有金属的物品，如种种管制刀具、武器、金属制品、电子产品及其他含有金属的物品等，用来举行清静检查、防偷窃检查的一种有用工具,主要应用于政府机关、公安机关、审查院、法院、牢狱、看守所、海关、机场、车站、体育场馆、会展场馆、娱乐场合、大型聚会等场以是及五金、电子、首饰、军工、造币等工厂或企业！
领先优势
随身金属物可扫除功效：可扫除文胸，纽扣，皮带，首饰等随身携带的金属不报警
金属巨细智能识别：可以智能识别随身携带金属物品的巨细
防震设计：门体接纳PVC高级合成质料工艺制造，且带有防水胶套，具有防水防火、防腐等特点。
高检测迅速度： 可检测到半个回形针巨细的金属，不会漏报和串报.
复合式电路设计：信号频率可自由调理，接纳先进散射型红外扫描，迅速捕获感应信号，且并网装置多台探测门配合事情互不滋扰。
数字过滤：强盛的DSP信号处置惩罚数字过滤系统，接纳当今天下最先进的磁电兼容手艺形成极佳的抗电磁滋扰能力和较强的耐触摸和碰撞能力。
自我诊断: 内置自我诊断程序，开机自检，蜕化自动提醒并能够自动丈量和显示周围情形的滋扰情形。
自动统计：自动统计通过人数与报警次数，准确率100%。
飞物报警功效： 金属物体从门中心抛过也会准确报警.
智能区分： 能区分铁磁质和非铁磁质金属物品.
低探测高度： 离地2CM以上的金属物体进入检测区域均可报警.
多区位报警功效： 人体差别位置的多个金属通过安检门时同时报警，并可以指示多个金属的位置.
开机自诊断功效： 开机时对系统举行自检，并显示检测效果.
多区域自力探测： 18个自力探测区域，18区位显示，每个区域2000级迅速度品级调理,为知足客户所探测差别的违禁物品，可凭证现实使用情形预先设定金属物品的可能部位及体积、重量、巨细举行适当的迅速度调理，扫除皮带扣、钥匙、首饰、硬币等物品的误报，
？榛榧设计： 运输、维护利便快捷.
产品特点
探测精度： 最高迅速度在门正中心检测到一根大头针（或1/2）回形针，不会漏报和串报.可在扫除皮带扣、皮鞋、文胸等物品的
影响检测到20克以上的铜、铝、锌等贵金属或管制刀具和枪支.
抗滋扰设计： 凭证周围情形，开机自动设置频率避开滋扰，多台门并排事情时相互靠拢，对探测性能也无显着影响.
区位显示： 产品分成18防区，18区位显示可疑物能在每个区域准确显示.
频率设置： 可自动设11种频率，差别频率设定差别铃声，也可举行手动设频，7000-8999Hz恣意设置.
迅速度调理： 迅速度可以凭证需要调解，共有2000级迅速度.
统计人数： 双侧对射红外可以准确检测到通过人数和报警人数.
四侧定位灯： 门体四侧均带有LED灯，能直观地通过定位灯显示违禁物品所在区域，视角可达360°
声光报警： 9款报警提醒音可调，音量巨细可调，报警时间是非可调.
面板显示： 接纳液晶（LCD）显示，中文、英文菜单相互切换.
防震设计： 在起风某人为晃动下不会误报.
一键设置： 内置智能芯片，贮存多种场合推荐探测迅速度设定值，利便用户快速选择。
门体材质： 外表接纳PVC,与入口品牌材质完全相同，雅观、大方、防火、防侵蚀、防潮和防撞，稳固形.
？夭僮鳎 使用？仄鞫圆问傩猩柚，参数可以设密码；，非授权职员无法举行操作.
网络毗连（选配）： 预留通讯接口，可以与电脑、摄像头、三轧辊等毗连，监控、统计探测情形，调解安检门参数
清静；ぃ 切合国际清静标准，对心脏起博器佩带者、孕妇、磁性介质等无害.
治理员密码功效：内置8位治理员密码功效，有用避免非授权职员操作安检门
低功耗节能？椋喊布烀攀淙氲缪12V，整机功耗15W，
专用航空毗连线：所有外置毗连线所有接纳专用定做航空接口毗连线，越发稳固，耐用
恢复设置：恢复出厂设置，一键恢复出厂数据
红外4种以上启动模式：可凭证情形等外部缘故原由，自由切换红外组合模式
PVC高透光灯罩（无金属立柱）：金属边框影响门的稳固性，安检门自己就是检测金属
系统自动诊断检测：当您启动探测门时，系统会自动对主控制系统、左右探测门板的探测系统、红外装置系统、各防区探头、各外接装备和端口举行自动检测诊断，故障时会发出报警声并在显示界面准确显示故障内容及缘故原由。
装置利便：门板螺栓所有接纳内六角包胶螺栓，是一体化设计，仅需要10分钟即可装置或拆卸完毕
手艺标准
辐射参照EN50081-1标准执行；
抗滋扰参照EN50082-1标准执行；
通过ISO9001:2008质量治理系统认证；
通过ISO14001情形治理系统认证；
通过OHSAS职业康健清静治理系统认证；
严酷执行GB15210-2018通过式金属探测器国家标准.
基本参数
运输重量： 约70 kg
功耗： <15W
事情温度： -25℃~55℃
事情湿度： 95%,无冷凝
外接电源： 180V~240V，50/60HZ
事情频率： 凭证装置情形自行调理

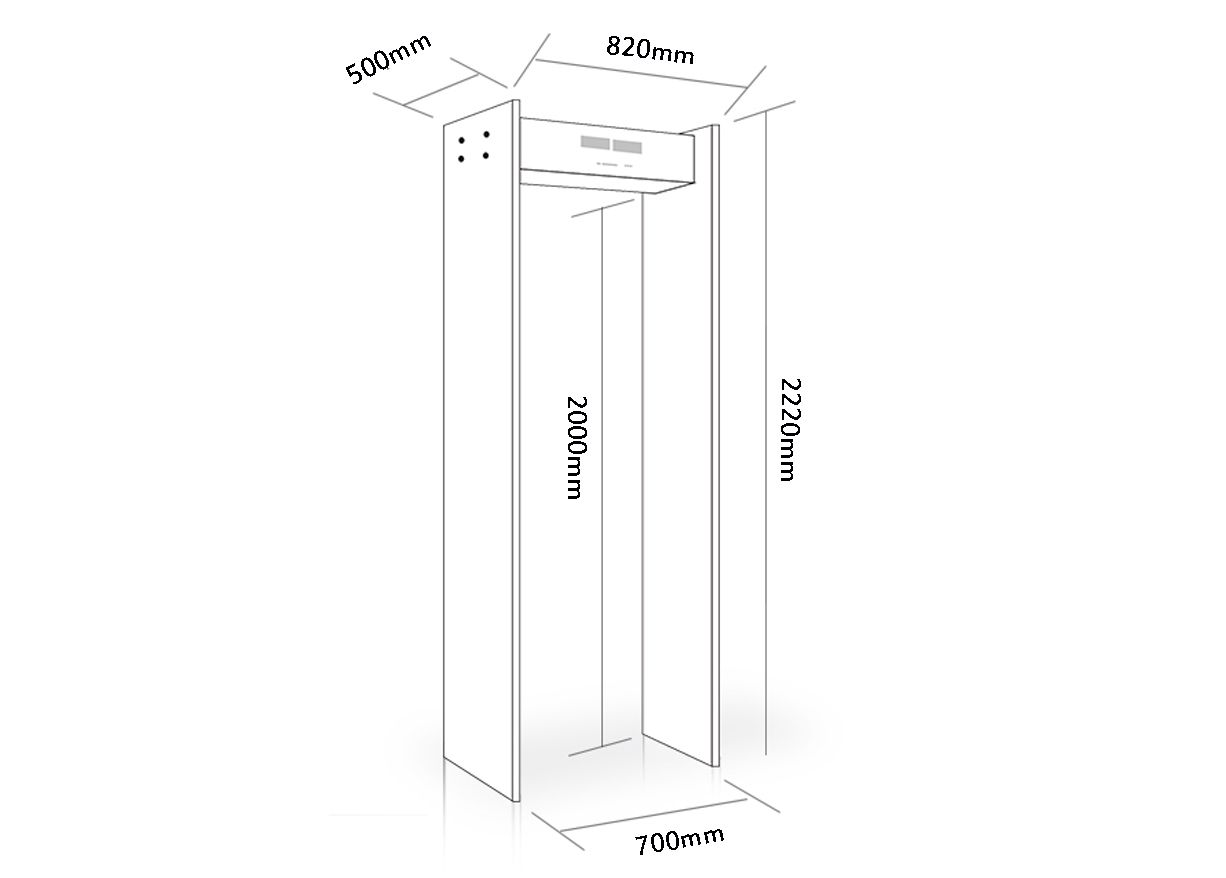

形状尺寸： （mm）2220(高)×820(宽)×500(深)
通道尺寸： （mm）2000(高)×700(宽)×500(深)
英文说明：
English description
CSD-A7000 ( LCD ) luxury type liquid crystal display metal detection door
Performance introduction
CSD-A7000 metal detector gate ( security doors) using the world's most advanced electromagnetic compatible dual detecting technology, the original global earthquake design, has high detection precision, anti-jamming capability is extremely strong, accurate counting, good stability and so on. When the body carrying metal articles by can produce alarm device, can accurately detect human body or hand body package box with metal objects containing metal items, such as various control tools, weapons, metal products, electronic products and other metal containing items, used to conduct safety inspection, check anti-theft an effective tool, mainly used in government agencies, public security organs, procuratorate, court, prisons, detention, the customs, airport, station, gymnasium, exhibition venues, entertainment venues, large gatherings and other places and hardware, electronics, jewelry, military, mint and other factories or enterprises!
Performance introduction:
The original global seismic design, the door body adopts the PVC advanced synthetic material manufacturing process, and a rubber sleeve, with waterproof and fireproof, anticorrosive etc..
6 overlapping metal detection area, using the digital pulse technology, interactive transmitting and receiving, to accurately determine the metal object position
The panel of the mainframe case with LCD light display module, can directly see the body to carry concealed contraband corresponding position.
Panel, front panel LCD ( LCD ) display, with Chinese and English menu, built in a variety of places recommended detection sensitivity setting, with the push of a button, such as electronic factory, electronic factory, all the parameters are electronic factory parameter, the installation and the operation more simple.
You can use remote control to control parameters. Parameters can be password protected, so that unauthorized personnel to operate.
Automatic coil winding and the host chip production can more accurately achieve the detection effect, with continuous working characteristic.
Each detection area with 200 sensitive procedures can be arbitrary regulation, to meet customer different contraband detection, according to the actual use of preset metal objects may position and volume, weight, size appropriate sensitivity adjustment, exclude belt buckle, key, jewelry, coins and other items of false positives, the highest sensitivity can detect a size of the metal clip.
Composite circuit design, signal frequency can be adjusted freely, the use of advanced dispersive infrared scanning, quickly capturing the induction signal, and the grid installation of multiple detection door work without mutual interference.
Strong DSP signal processing digital filtering system, using the world's most advanced electromagnetic compatibility technology formed a very good electromagnetic interference resistance ability and strong resistance to touch and impact.
Built in self test, diagnostic procedures, error automatically prompts and can automatically measure and display the ambient interference.
Automatically by the number of statistics and the alarm time, the accurate rate of 100%.
Password protection, allowing only in charge of personnel, operating, preventing unauthorized people changed parameters, no need of maintenance, no need of regular calibration.
For RS-485 communication interface with the computer networking, monitoring, statistical usage, and can be configured according to user requirements remote control device.
In compliance with international safety standards, the body of the cardiac pacemaker, pregnant women, floppy disk, magnetic tape, tape, film recording data and no negative effects.
Technical standard:
Electrical reference EN60950 safety standards.
Radiation according to EN50081-1 standards.
Anti interference according to EN50082-1 standards.
Strict enforcement of existing national standards through the metal detector.
Through a comprehensive ISO9001 : 2000 quality management system certification.
All through the European CE certification.
Three: technical parameters:
External power: 215V - 230V 50 / 60Hz
Power: 35W
Work environment: - 20 DEG C to 45 DEG C.
Transport the whole weight of about 95kg:
Operating frequency: according to the installation of environmental self-regulation
Machine weight: About 90kg
Dimensions: ( mm ) 2220 ( high ) x 820 ( W) x 522 ( deep )
Channel size: ( mm ) 2000 ( high ) x 700 ( W) x 522 ( deep )
